6501-KDNA010-020-24DC | 1/8' N.C. Triplet Manifold With Manual Override Direct Acting NBR 0-10 Bar
Log in to see prices here

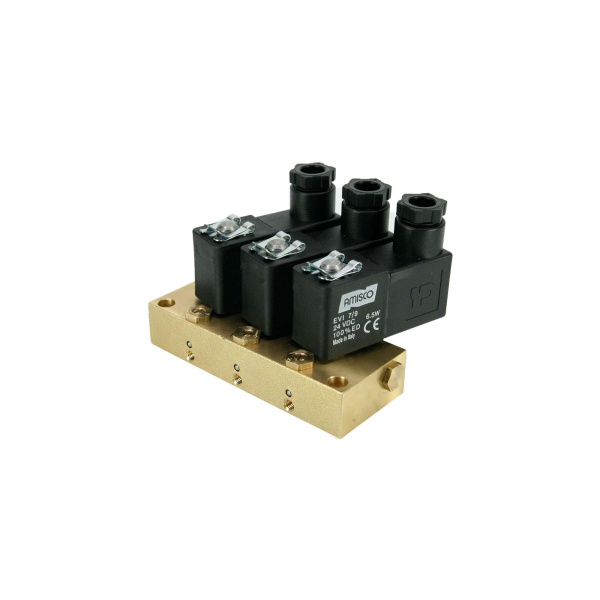

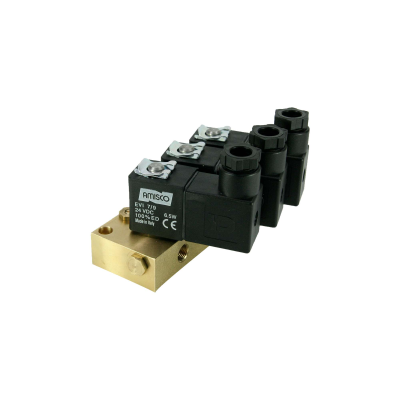

1/8" Solenoid Valve N.C. Triplet Manifold With Manual Override Direct Acting NBR 0 - 10 Bar 24V DC 6.5 W
The prominent features of the brass body normally closed special solenoid valve you are reviewing: 3-way manifold with flow control (adjustable), energy-efficient, 1 common inlet, 3 outlets, each outlet flow easily adjustable. Air, Water, Gas, Vacuum, Chemical, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Building Automation, Wending Machines, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 6501-KDNA010-020-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Special Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 6.5 W |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 05TA |
| Coil Type | TP6 |
| Product Weight (kg.) | 0.735 |
