7911-KDPB016-020-G24DC | 1/4' N.C. Stainless Steel For Acid Direct Acting PTFE 0-16 Bar G24VDC 17W
Log in to see prices here

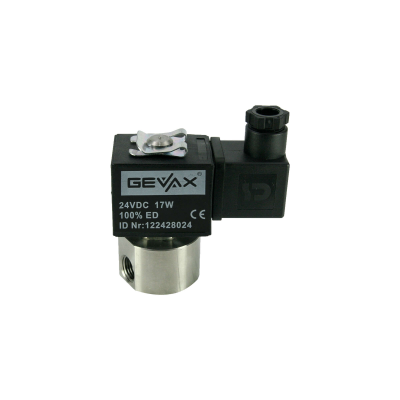

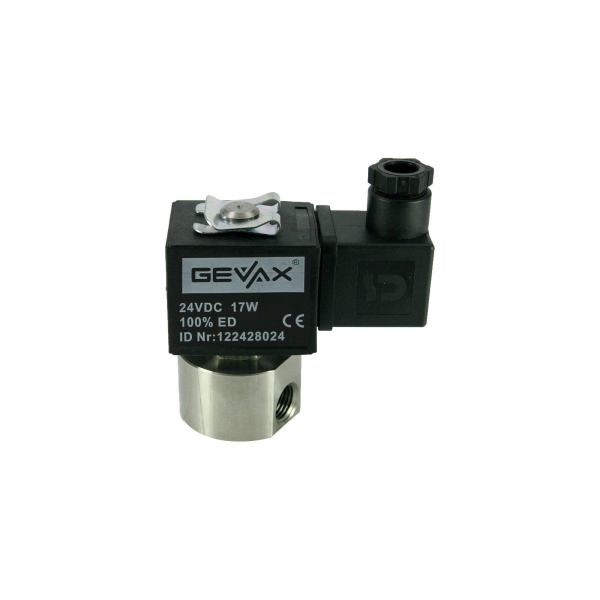

1/4" Solenoid Valve N.C. Stainless Steel For Acid Direct Acting PTFE 0 - 16 Bar G24V DC 17 W
The prominent features of the stainless steel body normally closed general purpose solenoid valve you are reviewing: Corrosion-resistant stainless steel body and internal parts, acid-resistant seal and internal components. Chemical, Acid Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 7911-KDPB016-020-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Stainless Steel Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Stainlees Steels |
| KV Value | 1.7 l/min |
| Tracking Number | 04OC |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.475 |
